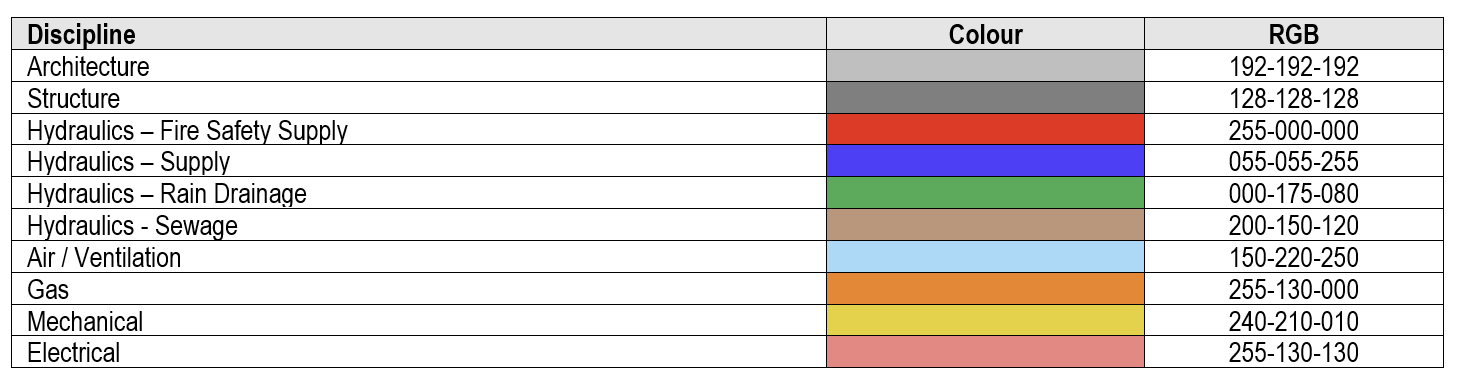

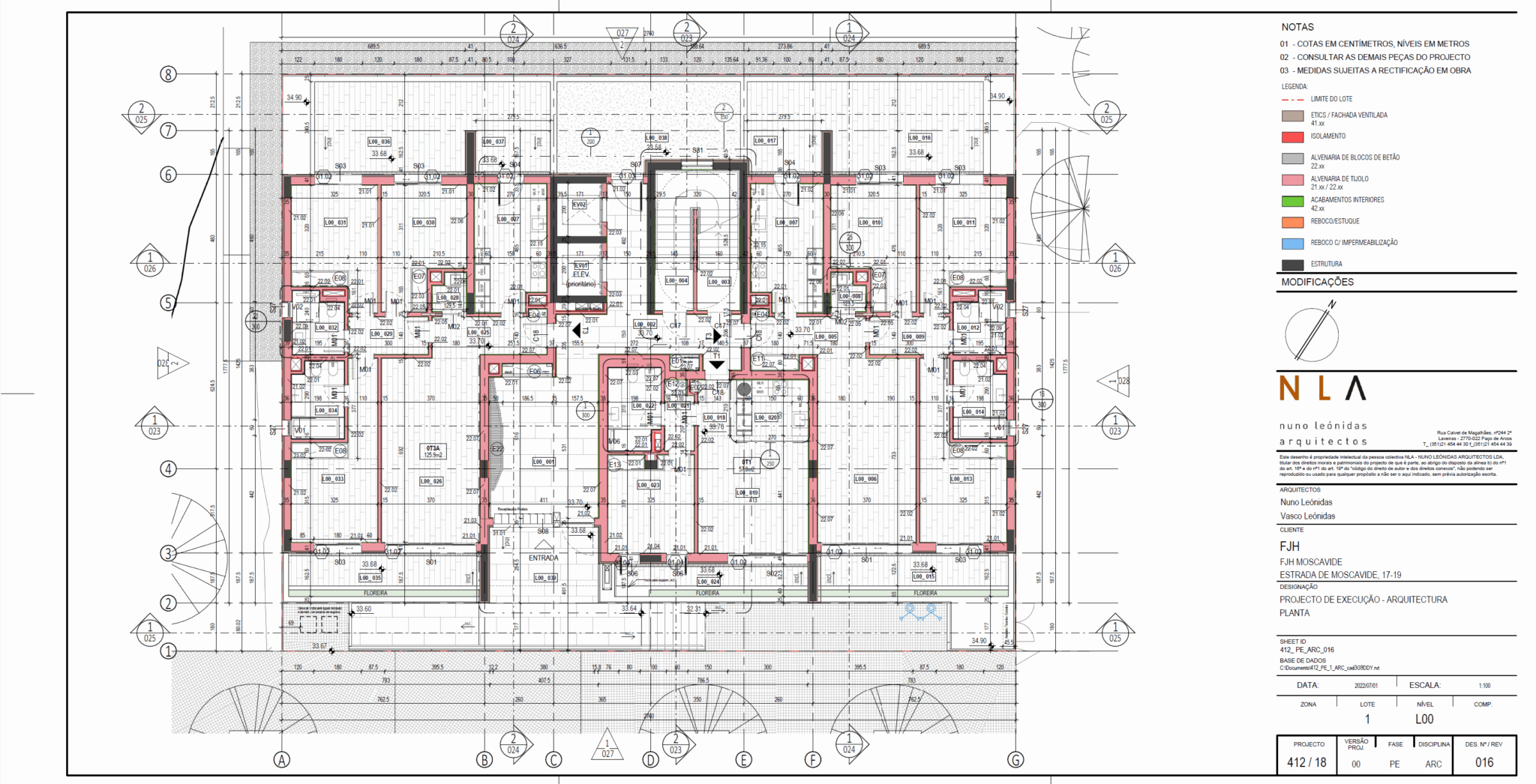

In the general floor plans, all the construction elements must be represented, properly tagged and identified: stairs, walls, finishes, doors, windows, sections, elevations, grids, dimensions, identification of enlarged areas.
Blog
-

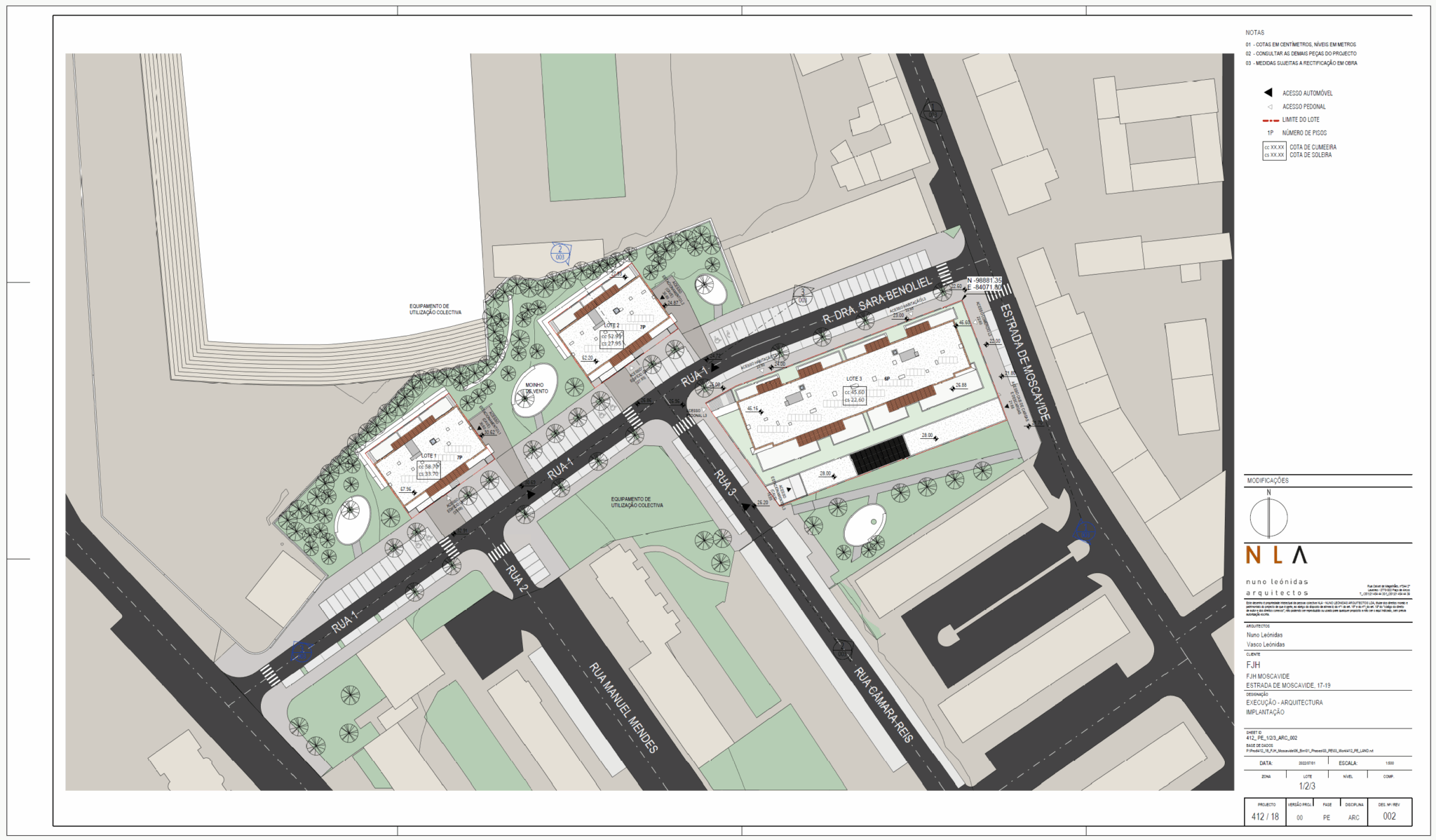

B09.03. Footprint
This type of plan must be presented at scale 1:500. It must locate the buildings in the plot site and identify the several buildings and relative accesses, general dimensioning, ground floor elevation, and the different top elevations of the buildings.
-
B09.01. Topographic Plans
Presented at scale 1:500,1:200 or 1:100, depending on the size of the project, it must include the level contours the coordinated points, referenced according to the proper coordinated system. The boundary plot and existing elements should also be included.
-
B09.02. Location Plans
Presented at scale 1:1000 or smaller scales. It must be used to identify the local of the project and to give it some geographical context.
Usually given by the official authorities.
-

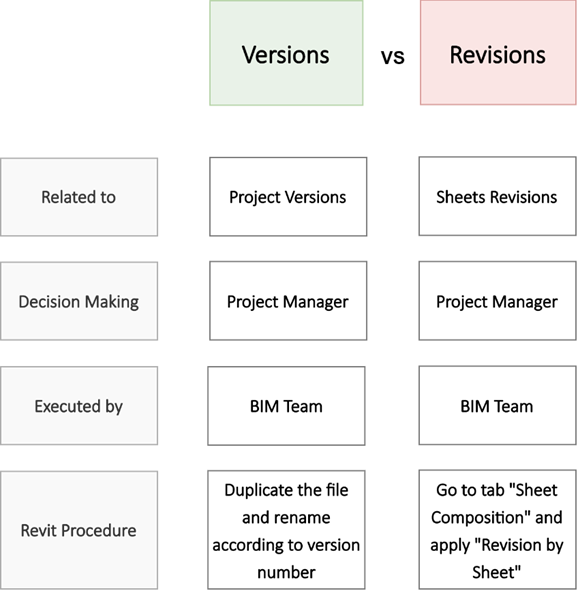

B08.04. Emissions, Revisions and Versions
In a project phase, there will be versions of the project, first emissions of sheets and revisions’ sheets.
Revisions:

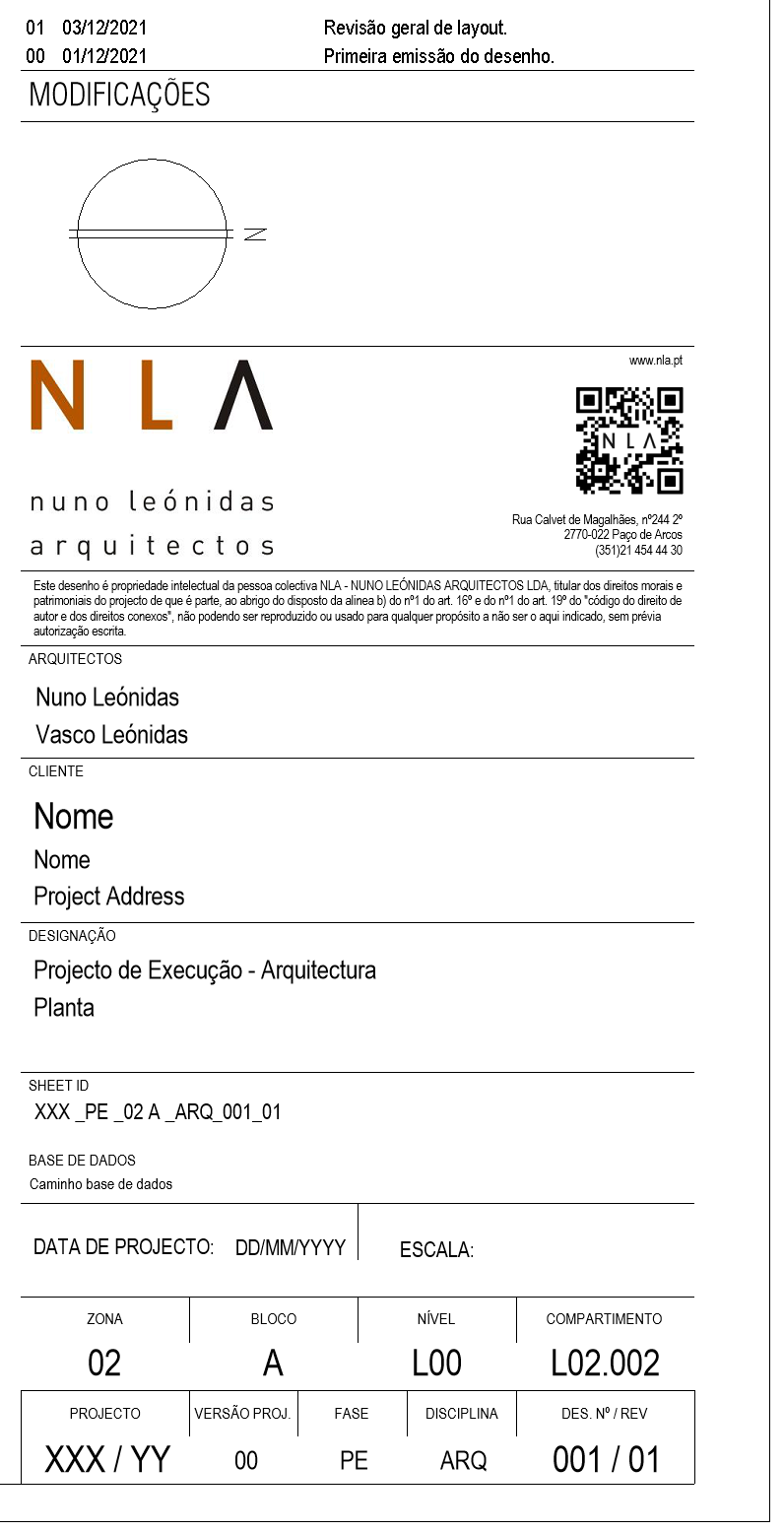

The changes reflected in a drawing have a revision number, that is identified in the sheet. The description of the revision is included in the legend of the sheet.
Versions
When there are several changes / revisions, it might be necessary to issue a new version of the project. This decision is made by the Project Manager. A new copy of the file must be created.
NOTE: The sheet list can be issued several times, with the new revisions of the sheets, but this does not mean that it is necessarily a new version of the project.
-
B08.03. Number
All drawings shall be numbered with a numeric sequence.
-
B08.02. Standard Formats
Size Width x Height (mm) A0 841 x 1189 mm A1 594 x 841 mm A2 420 x 594 mm A3 297 x 420 mm A4 210 x 297 mm A5 148 x 210 mm -

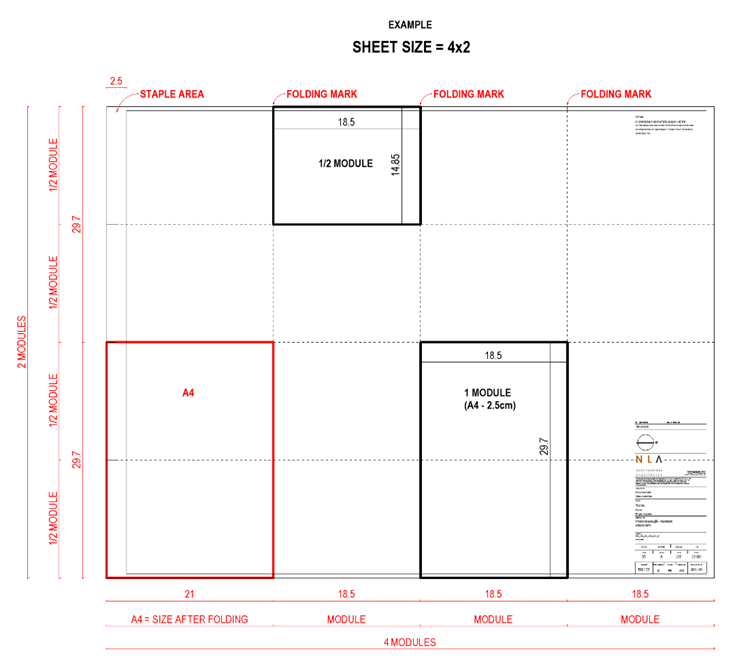

B08.01. NLA’s Formats
3×1 3×1.5 3×2 3×2.5 580×297 580×446 580×594 580×743 4×1 4×1.5 4×2 4×2.5 765×297 765×446 765×594 765×743 5×1 5×1.5 5×2 5×2.5 5×3 950×297 950×446 950×594 950×743 950×891 6×1 6×1.5 6×2 6×2.5 6×3 1135×297 1135×446 1135×594 1135×743 1135×891
